Name
|
W510A
|
Dimension
|
109mm(L)×85mm(W)×18.6mm(H) (w/o Antenna)
|
Housing
|
Aluminum
|
Weight
|
150g (w/o Antenna)
|
Power Supply
|
+12Vdc ±10%, Reverse Power/Overvoltage/Overcurrent Protection
|
Current Consumption
|
Rx 80mA Tx 86mA WDT Reset 88mA (@12Vdc)
|
Operating Temperature
|
-10℃ ~ +60℃
|
RF Features
|
ㆍFrequency : 433.050MHz ~ 434.790MHz
ㆍChannel Spacing : 25KHz
ㆍTransmitter Power : 10mW
ㆍReceiver Sensitivity : -116 ~ -120dBm(-116dBm typ.)
ㆍModulation : FSK
ㆍBandwidth : < 14KHz
|
Performance
|
ㆍExpected Line-Of-Sight Range : Up To 1.5km with λ/4 Dipole Antenna
ㆍRF data rate : 4.8K Baud, 7.2K Baud
|
I/O Interface
|

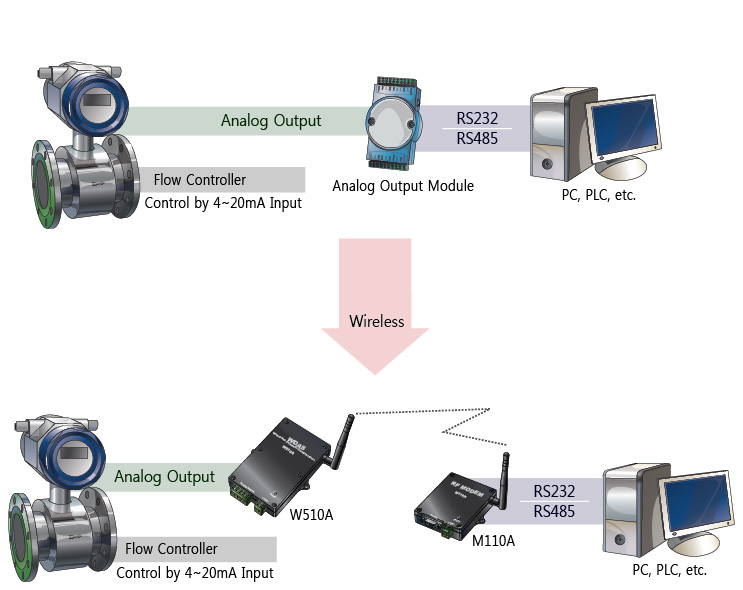

Analog Output
|
2Ch. Analog Output, with 16Bit Resolution
(0~5V, 0~10V, 0~20mA)
User Selectable Output Type : Current or Voltage
User Selectable Output Voltage Range : 0~5V or 0~10V |
Antenna
Interface
|
ㆍSMA Connector
ㆍImpedance 50Ω
|
