  • System Operation Examples

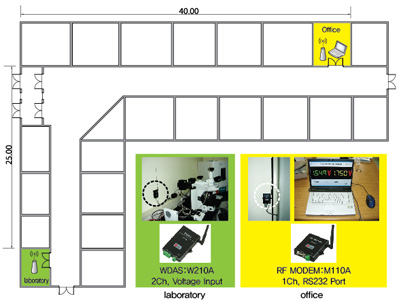

    01. Real-time monitoring of measurement data
      Data : Measurement data in the laboratory
      (Voltage signal : 0~5Vdc, 2Ch)
      Data Receiver : RF MODEM(SEBINE Technology, Inc., M110A)
      Data Transmitter : WDAS(SEBINE Technology, Inc., W210A)
      Installation Place : Korea Institute of Machinery & Materials(KIMM)

      - Real-time monitoring in the office by wireless for measurement data
      - All doors are steel doors
      - The office is a sandwich panel plate
      - Wireless receiving distance is (40m + 25m)

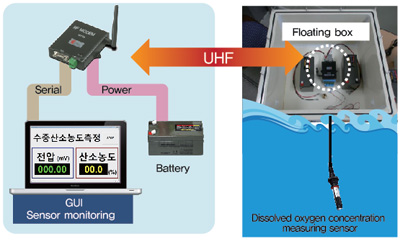

    02. Real-time monitoring of dissolved oxygen concentration
      Data : Dissolved oxygen concentration measuring sensor
      (Voltage signal : 0~60mV)
      Data Receiver : RF MODEM(SEBINE Technology, Inc., M110A)
      Data Transmitter : RF MODEM(SEBINE Technology, Inc., M110A)
      + ADAM4117(Analog Input Module)
      Delivery : Korea Institute of Machinery & Materials(KIMM)

      - Real-time monitoring by wireless for dissolved oxygen concentration measuring sensor data
      - M100A, ADAM4117 and Battery installed in the water floating(waterproof) box

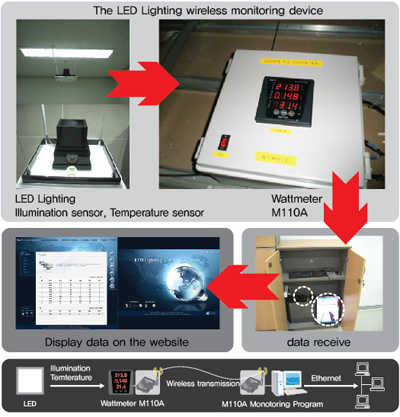

    03. Real-time monitoring of LED lighting conditions
      Data : Serial data (Illumination, Ambient temperature and
      Power/Voltage/Electric current)
      Data Receiver : RF MODEM(SEBINE Technology, Inc., M110A)
      Data Transmitter: RF MODEM(SEBINE Technology, Inc., M110A)
      Installation Place : Daejeon Gaodong Post office,
      Jeju International Airport, Climate Energy Center

      - Real-time monitoring by wireless for LED lighting conditions

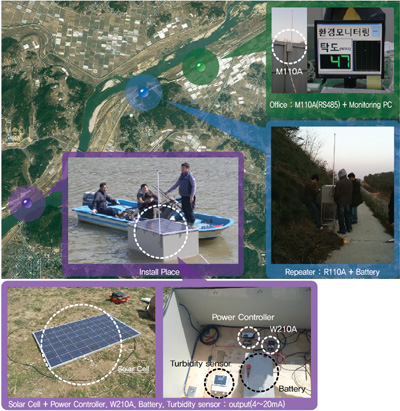

    04. Real-time monitoring of river environment conditions
      Data : Turbidity sensor signal (Analog signal : 4~20mA)
      Data Receiver : RF MODEM(SEBINE Technology, Inc., M110A)
      Data Transmitter : WDAS(SEBINE Technology, Inc., W210A)
      Installation Place : GS Engineering & Construction Corp. - Kum River

      - Real-time monitoring in the office by wireless for turbidity values of river
      - Line of sight 4km, install a repeater(R110A) blocked
      in the mountains

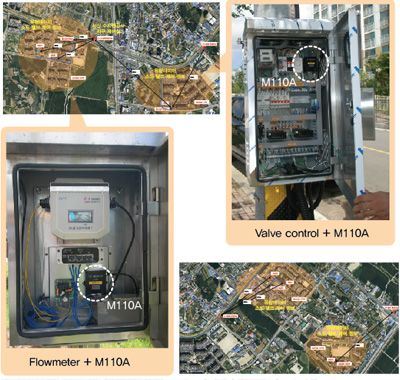

    05. Real-time monitoring and control of water supply line
      Data : Serial data(Flow data, Water valve control data(On/Off))
      Data Receiver : RF MODEM(SEBINE Technology, Inc., M110A)
      Data Transmitter : RF MODEM(SEBINE Technology, Inc., M110A)
      Installation Place : Seosan-si, Chungcheongnam-do, Korea

      - Real-time monitoring in the office by wireless for amount of water used
      - Enable effective management of the water supply

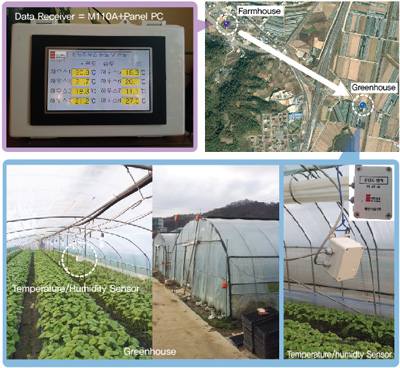

    06. Real-time monitoring of greenhouse conditions
      Data : Temperature/Humidity
      Data Receiver : RF MODEM(SEBINE Technology, Inc., M110A)
      + Panel PC
      Data Transmitter : Temperature/Humidity sensor
      + RF MODEM(SEBINE Technology, Inc., M110A)
      Installation Place : Perilla leaf green house, Chubu-myeon,
      Geumsan-gun

      - Real-time monitoring in the farmer’s house by wireless for greenhouse inside temperature and humidity

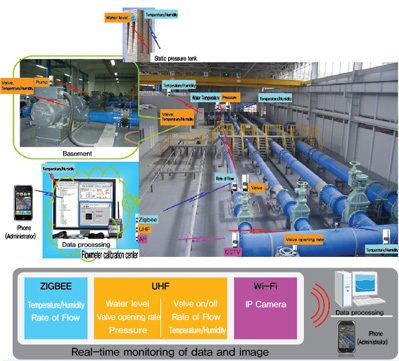

    07. USN composite network in flowmeter calibration center
      Zigbee network : Acquisition data
      (Temperature/Humidity data, Flowmeter)
      UHF network : Acquisition data
      (Water lever, Valve opening rate, pressure,
      Valve on/off, Flowmeter, Temperature/Humidity)
      Wi-Fi network : IP Camera
      Installation Place : Korea water Resources Corporation(K-water)
      Institute/Flowmeter calibration center

      - Real-time monitoring of data and image by internet or smartphone
      - Zigbee(2.4GHz) and UHF(433MHz) based system

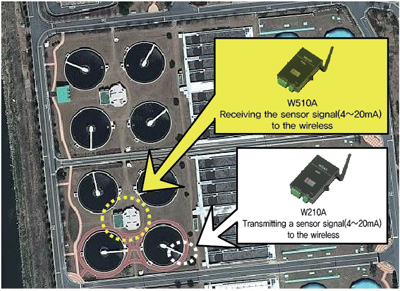

    08. Real-time monitoring of sludge depth measurement
      Data : Sludge depth measurement sensor data(Signal : 4~20mA)
      Data Receiver : WDAS(SEBINE Technology, Inc., W510A)
      Data Transmitter : WDAS(SEBINE Technology, Inc., W210A)
      Installation Place : First Sewage Treatment Plant in Suwon
      Environment Affairs Agency

      - Real-time monitoring of sludge depth
      - Line of Sight 400m
    09. Real-time monitoring of amount of electricity used
      Data : Serial data(Wattmeter data)
      Data Receiver : RF MODEM(SEBINE Technology, Inc., M110A)
      + Cellular Modem
      Data Transmitter : RF MODEM(SEBINE Technology, Inc., M110A)
      + Energy Meter
      Installation Place : North of Israel Area

      - Real-time monitoring in management office by wireless for amount of electricity used by the local plant
      - The collected local plant electricity used data is sent to the local center via M110A
      - The collected data is being transmitted to the Management Office via the 2G/3G network

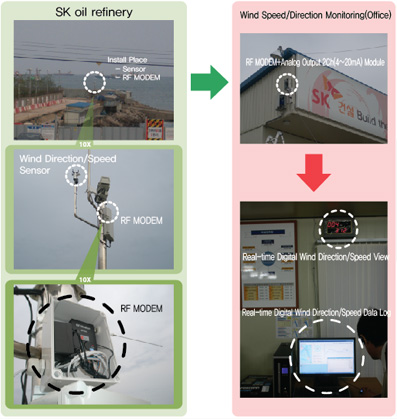

    10. Real-time monitoring of docking facility weather conditions
      Data : Wind Direction/Speed sensor(Analog signal : 4~20mA)
      Data Receiver : RF MODEM(SEBINE Technology, Inc., M110A)
      Data Transmitter : RF MODEM(SEBINE Technology, Inc., M110A)
      Installation Place : Docking facility in SK oil refinery

      - Real-time monitoring in the office by wireless for docking facility weather conditions
      - Lind of Sight 700m

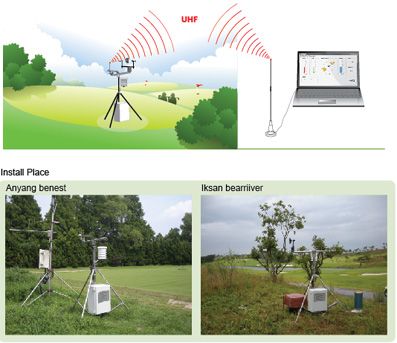

    11. Real-time monitoring of golf course weather conditions
      Data : Serial data(Wind direction/speed, Rainfall/Snowfall,
      Solar radiation, Temperature/Humidity)
      Data Receiver : RF MODEM(SEBINE Technology, Inc., M110A)
      Data Transmitter : RF MODEM(SEBINE Technology, Inc., M110A)
      Installation: Anyang benest golf course, Iksan bearriver golf course

      - Real-time monitoring in the office by wireless for golf course weather conditions for grass

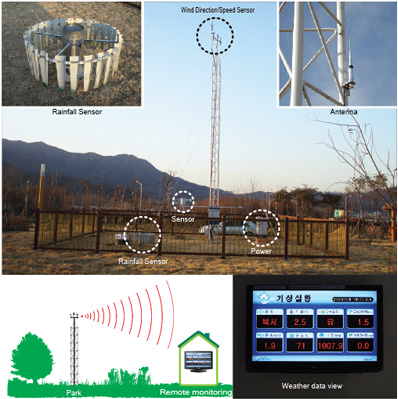

    12. Real-time monitoring of park weather conditions
      Data : Serial data(Wind direction/speed, Rainfall, Pressure,
      Temperature/Humidity)
      Data Receiver : RF MODEM(SEBINE Technology, Inc., M110A)
      Data Transmitter : RF MODEM(SEBINE Technology, Inc., M110A)
      Installation Place : Gwacheon National Science Museum Ecological Park

      - Real-time monitoring in the museum office by wireless for ecological park weather conditions

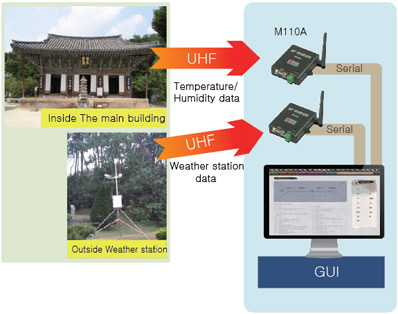

    13. Real-time monitoring of the temple environment conditions
      Data : Serial data
      (*Outside→Visibility, Temperature/Humidity, Wind Direction, Wind Speed, Rainfall *Inside→Temperature/Humidity)
      Data Receiver : RF MODEM(SEBINE Technology, Inc., M110A)
      Data Transmitter : RF MODEM(SEBINE Technology, Inc., M110A)
      Installation Place: The main building of a Silleuksa Temple

      - Real-time monitoring in the office by wireless for temples outside environment conditions
      - Real-time monitoring in the office by wireless for the main building of a temple internal Temperature and humidity conditions

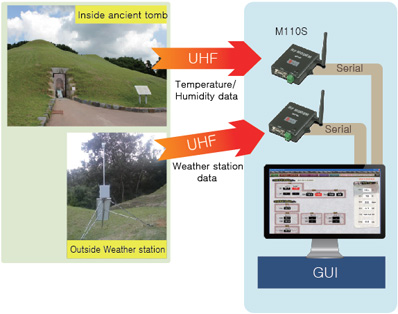

    14. Real-time monitoring of the ancient tomb environment conditions
      Data : Serial Data
      (*Outside→Temperature/Humidity, Wind Direction,
      Wind Speed, Rainfall *Inside→Temperature/Humidity)
      Data Receiver : RF MODEM(SEBINE Technology, Inc., M110S)
      Data Transmitter : RF MODEM(SEBINE Technology, Inc., M110S)
      Installation Place : Goahri Tombs(Goryeong), Neungsanri Tombs(Buyeo),
      Songsanri Tombs(Gongju)

      - Real-time monitoring in the office by wireless for ancient tomb outside environment conditions
      - Real-time monitoring in the office by wireless for ancient tomb internal environment conditions
