Name
|
R110A
|
|
Dimension
|
88.1mm(L)×85mm(W)×19.6mm(H) (w/o Antenna, Connector)
|
|
Housing
|
Aluminum
|
|
Weight
|
140g (w/o Antenna)
|
|
Power Supply
|
+12Vdc ±10%, Reverse Power/Overvoltage/Overcurrent Protection
|
|
Current Consumption
|
Tx 94mA, Rx 88.5mA, WDT Reset 114mA (@12Vdc)
|
|
Operating Temperature
|
-10℃ ~ +60℃
|
|
RF Features
|
ㆍFrequency : 433.050MHz ~ 434.790MHz
ㆍChannel Spacing : 25KHz
ㆍTransmitter Power : 10mW
ㆍReceiver Sensitivity : -116 ~ -120dBm(-116dBm typ.)
ㆍModulation : FSK
ㆍBandwidth : < 14KHz
|
|
Performance
|

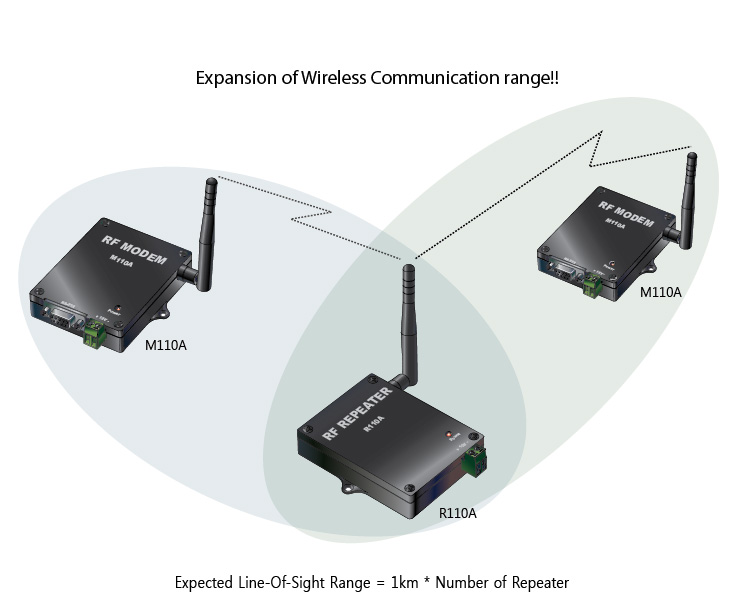

ㆍExpected Line-Of-Sight Range : Up To 1.5km with λ/4 Dipole Antenna
ㆍRF Data Rate : 4.8K Baud, 7.2K Baud
|
|
Antenna
Interface
|
ㆍSMA Connector
ㆍImpedance 50Ω
|
