Name
|

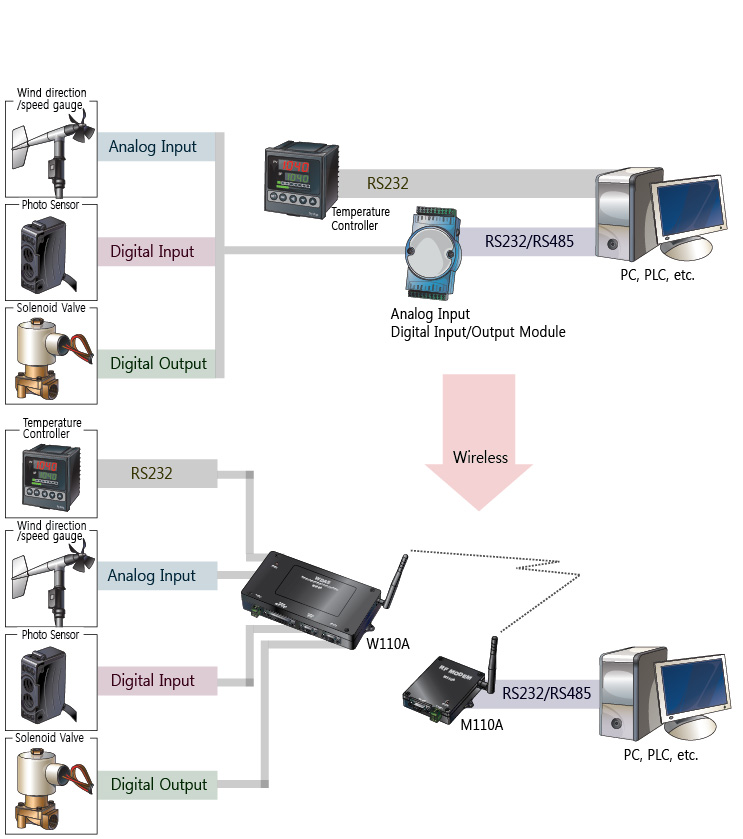

W110A
|
|
Dimension
|
105mm(L)×212mm(W)×34mm(H) (w/o Antenna)
|
|
Housing
|
Aluminum
|
|
Weight
|
510g (w/o Antenna)
|
|
Power Supply
|
+9 ~ 35Vdc ±10%, Reverse Power/Overvoltage/Overcurrent Protection
|
|
Current Consumption
|
Max 1.04W (@24Vdc)
|
|
Operating Temperature
|
-10℃ ~ +70℃
|
|
RF Features
|
ㆍFrequency : 433.050MHz ~ 434.790MHz
ㆍChannel Spacing : 25KHz
ㆍTransmitter Power : 10mW
ㆍReceiver Sensitivity : -116 ~ -120dBm(-116dBm typ.)
ㆍModulation : FSK
ㆍBandwidth : < 14KHz
|
|
Performance
|
ㆍExpected Line-Of-Sight Range : Up To 1.5km with λ/4 Dipole Antenna
ㆍRF data rate : 4.8K Baud, 7.2K Baud
|
|
I/O Interface
|
Serial
|
ㆍSerial Communication Basic Setting : Data Bit 8bit, No Parity, 1 Stop Bit
ㆍUser Selectable Baud Using DIP Switch : 1200, 2400, 4800, 9600, 19200, 38400,
57600, 115200
ㆍ9Pin D-SUB Female Connector |
Digital Input |
8Ch. Opto-Isolated Input : Up To 2500Vrms
Max. 50mA for Each Channel |
Digital Output |
8Ch. NPN Open Collector Output
Max. 50V and 500mA for Each Channel |
Analog Input |
5Ch. Analog Input, with 10Bit Resolution
ㆍCH #0 : Voltage (0~5V or 0~10V)
ㆍCH #1~#3 : Voltage or Current selectable
ㆍCH #4 : Current (0~20mA) |
|
Antenna
Interface
|
ㆍSMA Connector
ㆍImpedance 50Ω
|
