Name
|

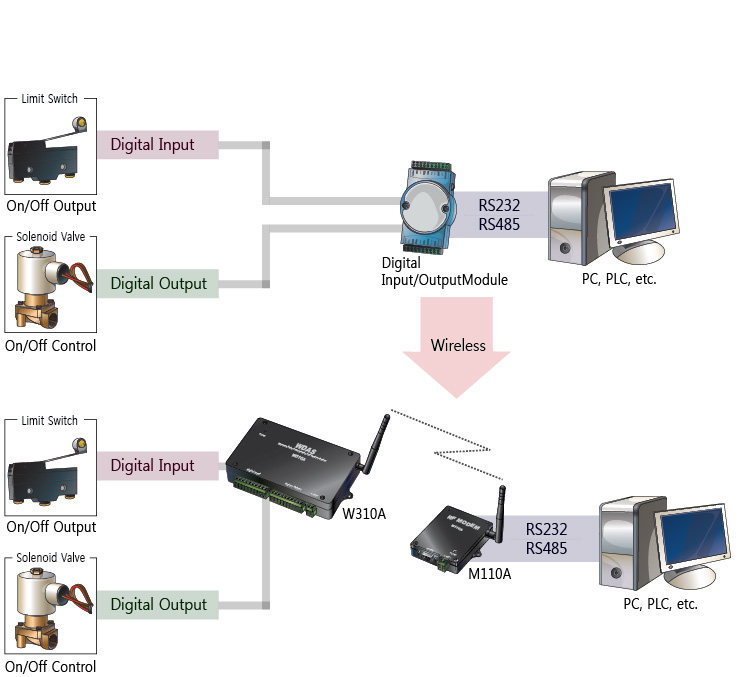

W310A
|
|
Dimension
|
133mm(L)×72.4mm(W)×19.6mm(H) (w/o Antenna, Connector)
|
|
Housing
|
Aluminum
|
|
Weight
|
220g (w/o Antenna)
|
|
Power Supply
|
+12Vdc ±10%, Reverse Power/Overvoltage/Overcurrent Protection
|
|
Current Consumption
|
Rx 120mA Tx 124.5mA WDT Reset 130mA (@12Vdc)
|
|
Operating Temperature
|
-10℃ ~ +60℃
|
|
RF Features
|
ㆍFrequency : 433.050MHz ~ 434.790MHz
ㆍChannel Spacing : 25KHz
ㆍTransmitter Power : 10mW
ㆍReceiver Sensitivity : -116 ~ -120dBm(-116dBm typ.)
ㆍModulation : FSK
ㆍBandwidth : < 14KHz
|
|
Performance
|
ㆍExpected Line-Of-Sight Range : Up To 1.5km with λ/4 Dipole Antenna
ㆍRF data rate : 4.8K Baud , 7.2K Baud
|
|
I/O Interface
|
Digital Input
|
8Ch. Opto-Isolated Input : Up To 2500Vrms
Max. 50mA for Each Channel |
|
Digital Output
|
8Ch. NPN Open Collector Output
Max. 50V and 500mA for Each Channel |
|

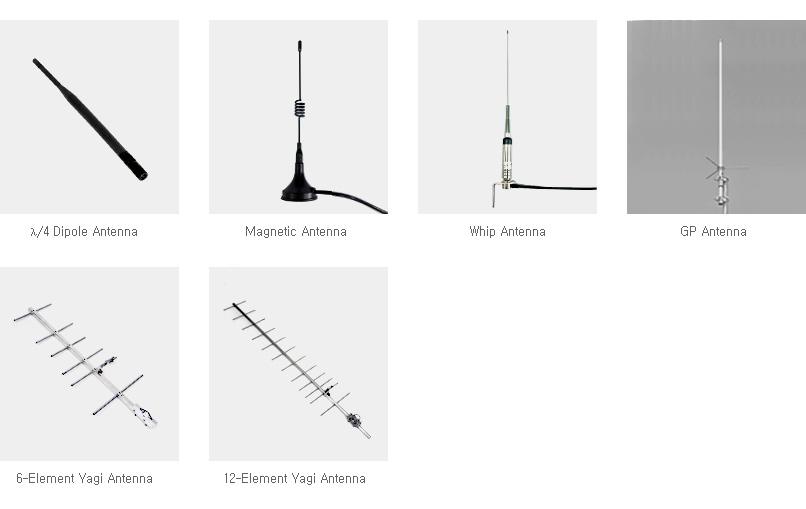

Antenna
Interface
|
ㆍSMA Connector
ㆍImpedance 50Ω
|
