Name
|
W410A
|
|
Dimension
|
85mm(L)×88.1mm(W)×19.6mm(H) (w/o Antenna)
|
|
Housing
|
Aluminum
|
|
Weight
|
180g (w/o Antenna)
|
|
Power Supply
|
+12Vdc ±10%, Reverse Power/Overvoltage/Overcurrent Protection
|
|
Current Consumption
|
Rx 86mA Tx 91mA WDT Reset 94mA (@12Vdc)
|
|
Operating Temperature
|
-10℃ ~ +60℃
|
|
RF Features
|
ㆍFrequency : 433.050MHz ~ 434.790MHz
ㆍChannel Spacing : 25KHz
ㆍTransmitter Power : 10mW
ㆍReceiver Sensitivity : -116 ~ -120dBm(-116dBm typ.)
ㆍModulation : FSK
ㆍBandwidth : < 14KHz
|
|
Performance
|
ㆍExpected Line-Of-Sight Range : Up To 1.5km with λ/4 Dipole Antenna
ㆍRF data rate : 4.8K Baud, 7.2K Baud
|
|
I/O Interface
|

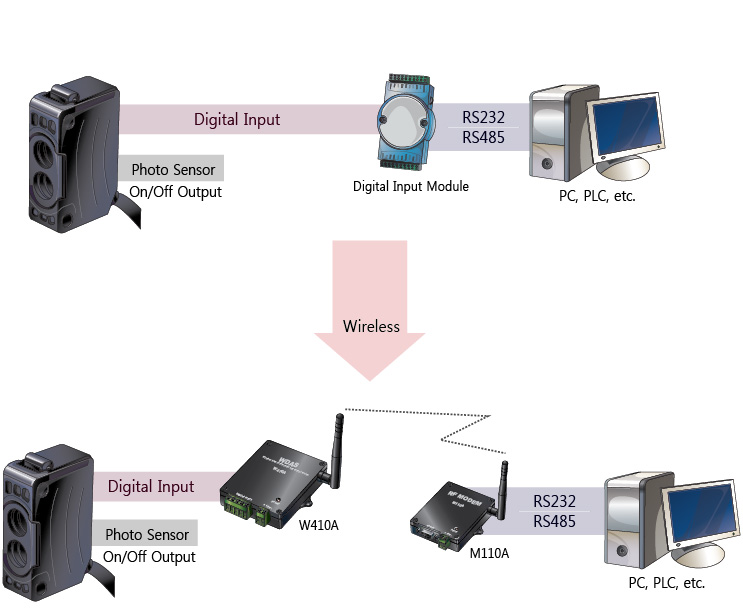

Digital Input
|
4Ch. Opto-Isolated Input : Up To 2500Vrms
Max. 50mA for Each Channel |
|
Antenna
Interface
|
ㆍSMA Connector
ㆍImpedance 50Ω
|
