Item
Specification
Name
M110A
Dimension
88.1mm(L)×85mm(W)×19.6mm(H) (w/o Antenna, Connector)
Housing
Aluminum
Weight
140g (w/o Antenna)
Power Supply
+12Vdc ±10%, Reverse Power/Overvoltage/Overcurrent Protection
Current Consumption
Tx 94mA, Rx 88.5mA, WDT Reset 114mA (@12Vdc)
Operating Temperature
-10℃ ~ +60℃
RF Features
ㆍFrequency : 433.050MHz ~ 434.790MHz ㆍChannel Spacing : 25KHz ㆍTransmitter Power : 10mW ㆍReceiver Sensitivity : -116 ~ -120dBm(-116dBm typ.) ㆍModulation : FSK ㆍBandwidth : < 14KHz
Performance
ㆍExpected Line-Of-Sight Range : Up To 1.5km with λ/4 Dipole Antenna ㆍRF Data Rate : 4.8K Baud, 7.2K Baud
I/O Interface

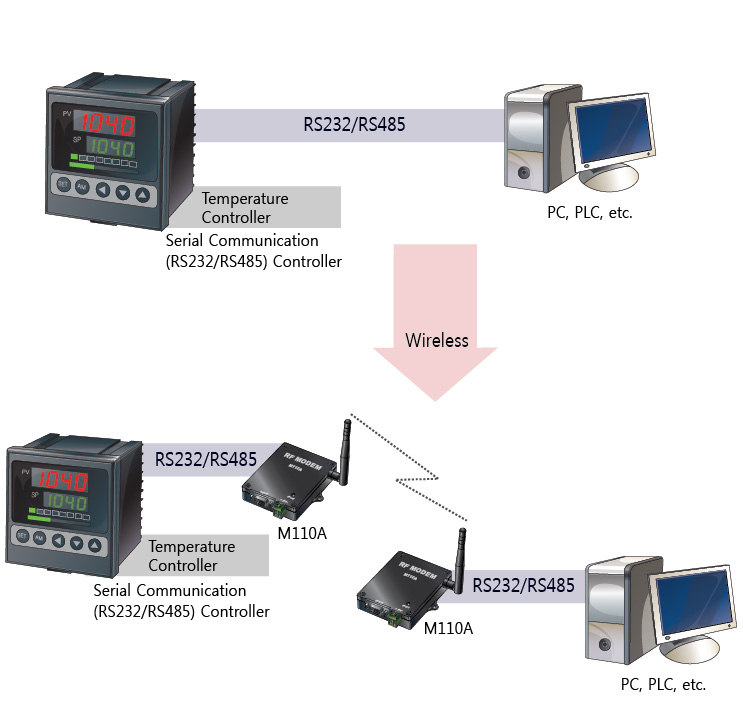

ㆍRS232/RS485 Selectable ㆍSerial Communication Basic Setting(User Selectable) : Data Bit 8bit, No Parity, 1 Stop Bit ㆍUser Selectable Baud Using DIP Switch : 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 ㆍ9Pin D-SUB Female Connector
AntennaInterface
ㆍSMA Connector
ㆍImpedance 50Ω
Antenna
Solar Power Supply System
