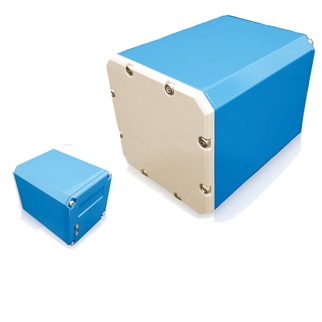

  • SRD-CDU60i
    Product Information
    • Distance measurement using 60GHz band
    • mm accuracy
    • Easy to handle with small size and light weight
    • Relay contact and current output
    • Applicable to various industrial sites such as steel industry, logistics industry, and port crane
    • Metal object detection, water level measurement, collision prevention, etc.
    • Excellent moving object detection ability
    Product Support
    Specification

    Item

    Specification

    Name

    SRD-CDU60i

    Frequency

    60GHz / ISM-Band

    Radar Output Power

    0.1W EIRP (Max.)

    Sensing Distance

    0 ~ 35M (Moving Target 20M)

    Accuracy

    ±2mm

    Beam Angle

    ±3deg

    Response Speed

    100ms

    Input Power

    DC12~48V

    Power Consumption

    4W (max.)

    Operating Temperature

    -10℃ to +60℃

    Size

    78 x 78 x 100mm (WxHxL)

    Protection Class

    IP65

    Weight

    880g

    Output Signal

    - Relay Contact (N.C, N.O, AC250V/DC30V) - Current Output (4~20mA)
