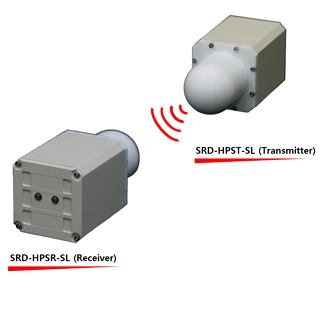

  • SRD-HPST/R-SL
    Product Information

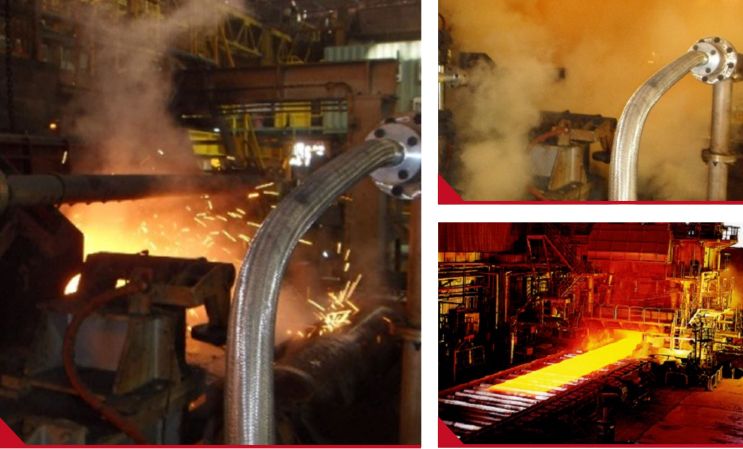

    • Excellent metal Object detection in harsh environments
    • Strong sensing characteristics such as water vapor, dust, dirty, and vibration by applying radar method
    • Minimization radar beam bandwidth by applying a lens antenna
    • The narrow beam width and the direct transmission/receive method enable high receive sensitivity and minimize the influence of surrounding obstacles.
    Product Support
    Specification Application

    Item

    Specification

    Name

    SRD-HPST/R-SL

    Frequency

    24.05 ~ 24.25GHz / ISM-Band

    Radar Output Power

    0.1W EIRP (Max.)

    Sensing Range

    Up to 15M

    Beam Angle

    ±4deg

    Input Power

    DC12~48V

    Power Consumption

    5W (max.)

    Operating Temperature

    -10℃ to +60℃

    Protection Class

    IP65

    Size

    78 x 78 x 172mm (WxHxL)

    Weight

    1.3kg

    Output Signal

    Relay Contact (N.C, N.O, AC250V/DC30V)

    Antenna

    Lens Antenna
